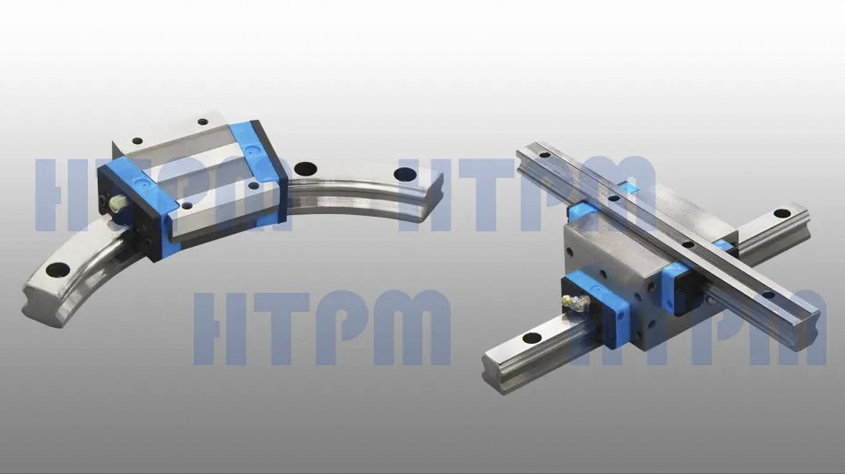

Kate's new precision rolling guide pairs LSY and CS almost encompass all the advantages of ball linear guide pairs, and achieve space saving, flexible installation, and other advantages, covering the fields of high-end CNC machine tools and modern intelligent equipment< Br/>


LSY series arc rolling guide rail pair

LSY series arc rolling guide pairs are derived from LGS linear ball guide pairs. It inherits the internal design structure of LGS series, has the advantages of four rows of single arc groove contacts in all directions, can bear loads in all directions, can realize arc or Circular motion of any diameter, and has the advantages of simple installation, no gap, and good rigidity< Br/>
&Nbsp;


&Nbsp;
&Nbsp;
Customizable arc motion radius
Capable of achieving arc or circular motion of any diameter size
&Nbsp;
Capable of carrying loads in all directions
Adopting a four column circular arc groove, with four column single circular arc groove contacts in all directions
&Nbsp;
High rigidity
Improving rigidity through structural optimization



&Nbsp;

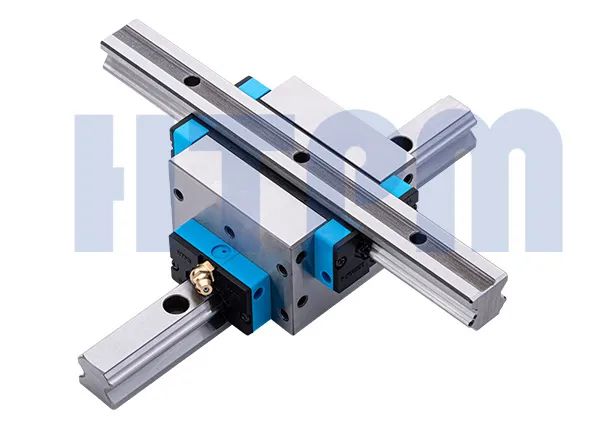

CS20 Cross Cross Ball Linear Guide Pair

The CS series cross shaped ball linear guide pair presents a cross shaped bidirectional groove overlapping integrated design, with the characteristics of simplified structure, saving installation space, and high rigidity. It has the same internal structure as the LGS series ball linear guide pair, with four row single arc groove contact in all directions, and has the function of equal load in four directions< Br/>
&Nbsp;


&Nbsp;
&Nbsp;
Compactness
Reduce installation space, make equipment smaller and lighter
&Nbsp;
Equal load in four directions
Adopting a four column circular arc groove and a 45 degree contact angle design for each groove steel ball, the four directions of the slider have the same rated load
&Nbsp;
High rigidity
Compared to two sliders locked back to back with screws, the cross shaped slider has higher rigidity
